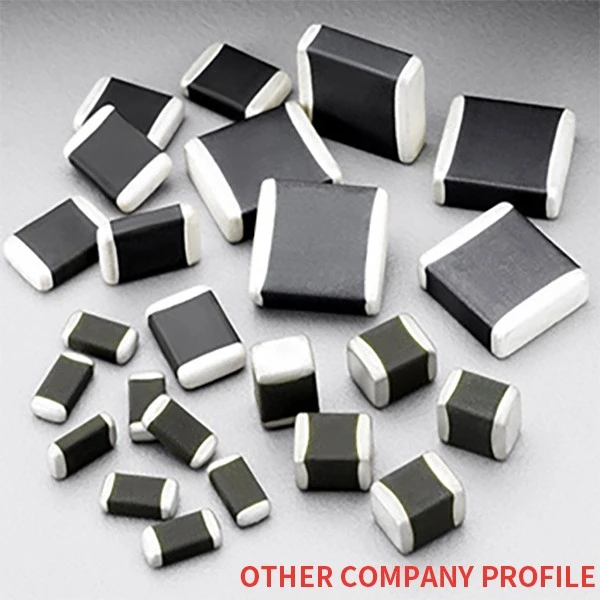

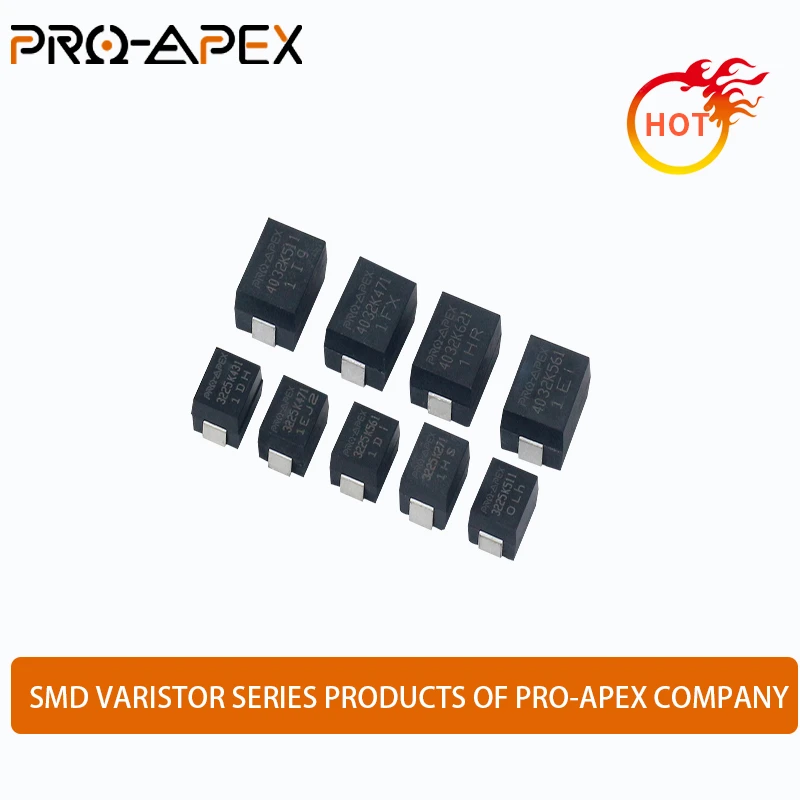

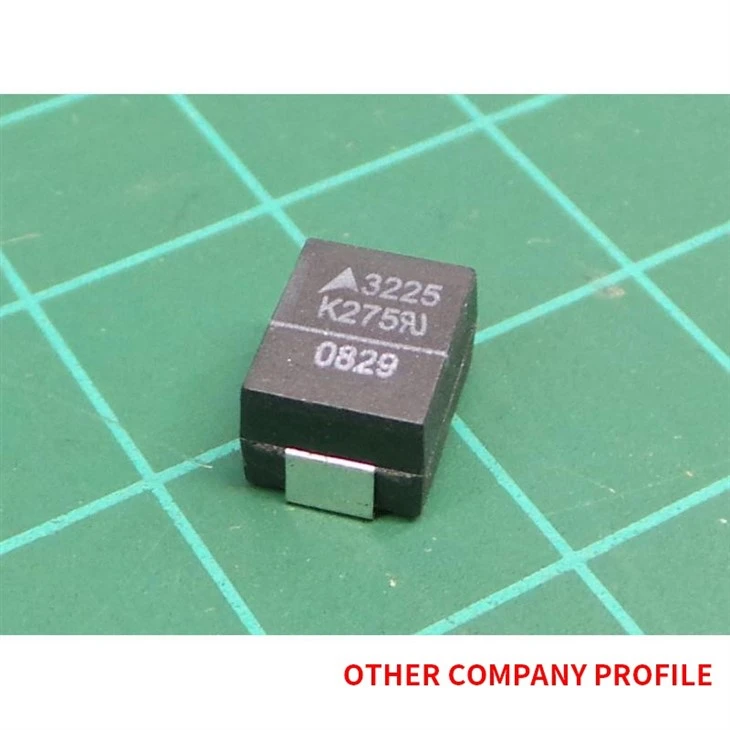

SMD Varistor

Advantages of SMD varistors:

Important prerequisites: comparisons should be made under the same surge capability, and the surge current waveform is 8/20μS

A, Low height

B,In the case of short circuit, the flame is slightly smaller

C, can use automatic placement machine, high efficiency

Disadvantages of SMD varistors:

A,Occupies a large area

B,The surge current is not large, the current surge current of 4032 size is only 2.5kA (15 times)

C,The amount of tin used has increased by 10%

1.Small appliances

2.LED driver circuit using aluminum substrate

3.Secondary protection of low-voltage electrical appliances. Plug-in varistors are still used between L-N.

1,The highest temperature zone cannot exceed 265°C

2,The residence time in the highest temperature zone shall not exceed 1 minute

Our company has the production capacity of full series and full size of chip varistors. Welcome to purchase after putting forward quality requirements.
