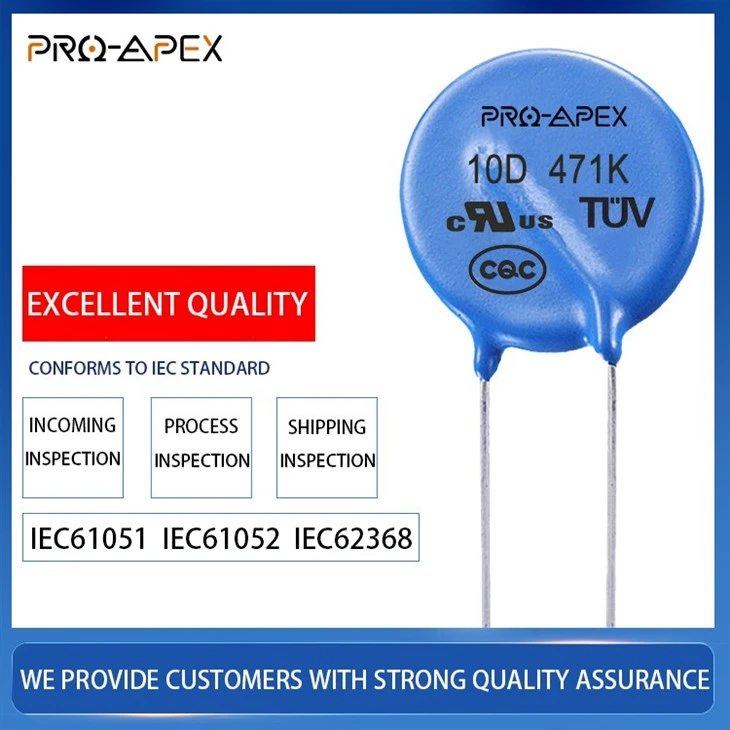

IEC Standard MOV Varistor
Key Performance Indicators：Composite pulse withstand capability
A、current waveform：8/20μS
B、Voltage waveform：1.2/50μS
C、Bearing times：≧10次
D、preferred value
●6kV&3kA(Less than 600V)
●8kV&4kA（more than 600V）
E、other IEC standard MOV Varistor
●10kV&5kA（IEC61643-11）
●20kV&10kA（IEC61643-11）
leakage current：≦20μA
U1mA：±10%
Description
Technical Parameters
Product Description
Maximum Continuous Voltage:
At least 1.25 times the upper limit voltage of the rated voltage of the equipment
Transient Overvoltage Test:
During the test, the circuit should be able to open the circuit by the action of protective devices, such as fuses and thermal links. Or closed due to GDT action.
Overload Test:
Connect fuse resistors R1, R2...RX in series until the circuit is disconnected. R1=16×Vr; R2=8×Vr;...Rx=0.5×(Rx-1)×Vr
Needle Flame Test:
A. Flame application time≧10S
B. Afterflame burning time≦5S
Our company can produce varistor that meet the IEC62368-1 standard, and it has always been our pursuit to manufacture high-quality products. It has always been our principle not to tempt customers with inferior products that are lower than the market price, to refuse to cut corners, and not to manufacture non-standard products. Welcome everyone to purchase our regular MOV
