NTC Thermistors for Energy Saving Lamps
Use NTC type: NTC thermistors for energy saving lamps temperature measurement type
Other applicable models: electric heater, electronic ballast
Zero power resistance range: 1KΩ～1000KΩ
Working temperature range: -45°C～+105°C
Suggested selection: MF52
Suggested thermal time constant: NTC thermistors for energy saving
lamps≦12S
Other applicable models: electric heater, electronic ballast
Zero power resistance range: 1KΩ～1000KΩ
Working temperature range: -45°C～+105°C
Suggested selection: MF52
Suggested thermal time constant: NTC thermistors for energy saving
lamps≦12S
Send Inquiry
Description
Technical Parameters
Product Description
Application principle of NTC Thermistor in energy-saving lamps.
The characteristic of NTC Thermistor is that the resistance value decreases non-linearly with the increase of temperature. When the temperature is too high, it will output a signal to the drive power supply, so that the drive power supply reduces the power and current, thus protecting the electronic energy-saving lamp.

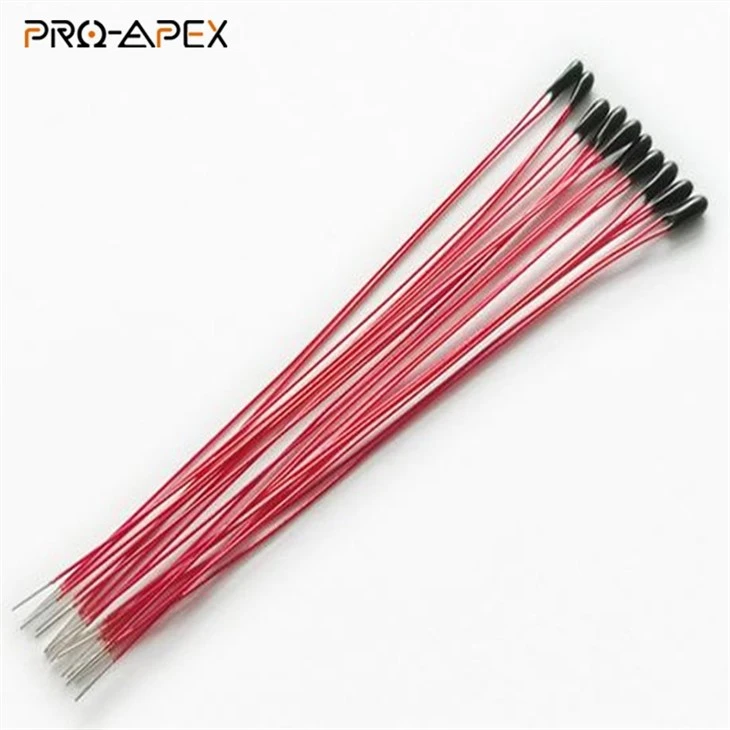

The head of this NTC thermistor produced by APEX is coated with epoxy resin, the radial wire is 28#PVC double splicing wire, and the temperature resistance is 105°C.
Features of PVC# double split line NTC thermistor
- High measurement accuracy
- Strict tolerance of resistance and Beta value.
- Fast response and small size.
- It can run stably for a long time.
- The rated resistance at 25°C can be 1kΩ~1000kΩ.
- Common resistance values at 25°C: 1kΩ, 2kΩ, 2.25kΩ, 3kΩ, 4.7kΩ, 5kΩ, 6.8kΩ, 10kΩ, 15kΩ, 20kΩ, 30kΩ, 40kΩ, 47kΩ, 50kΩ, 100kΩ, 150kΩ, 1000kΩ, etc.
- Dissipation factor: ≥3.0mW/C in still air.
- Thermal time constant: ≤12 seconds in still air.
- Working temperature range: -45°C - + 105°C
