X2 Safety Film Capacitor 310V
SFC-02
SFC-02

X2 Safety Film Capacitor 310V

Product material: Polypropylene film
Product features: X2 Safety Film Capacitor 310V high insulation resistance, good self-healing, long life, can withstand 2.5KV pulse voltage
Product function: Suitable for power cross-line noise reduction circuits and other AC occasions; widely used in anti-interference occasions such as power cross-connect lines with high requirements
Customized processing: Can be customized according to customer needs

Send Inquiry

Description

Technical Parameters

Features

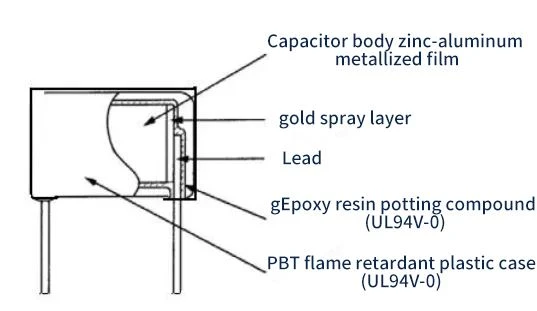

X2 Safety Film Capacitor 310V is a non-inductive structure, made of metallized polypropylene film as the dielectric/electrode winding, the wire is made of tinned copper-clad steel wire, sealed in the plastic shell with epoxy resin, the appearance is consistent, and the high-frequency loss Small, suitable for large current, high insulation resistance, good self-healing, long life, can withstand 2.5KV pulse voltage.

①Suppress interference and pass CQCUL ENEC safety certification.

②Can withstand overvoltage impact.

③It has superior self-healing properties.

④It has good flame-retardant and fire-proof functions.

⑤Electrode: metal evaporation layer (zinc-aluminum composite thickened type).

⑥Widely used in anti-interference occasions such as cross-line power supply with high requirements

Specifications

Reference Standard	IEC 60384-14:2005
Climatic Category	40/110/21B
Operating Temperature Range	-40℃~110℃
Capacitance Range	0.001-4.7μF
Rated Voltage	310 VAC
Capacitance Tolerance	±10%(K)
Voltage proof	4.3 UR (60S)Small-scale1.75UR(60S)
Dissipation Facton	Max 0.1%(at 1KHZ,25C)
Insulation Resistance	CR≤0.33uF IR≥15000MQ UR≤100V
