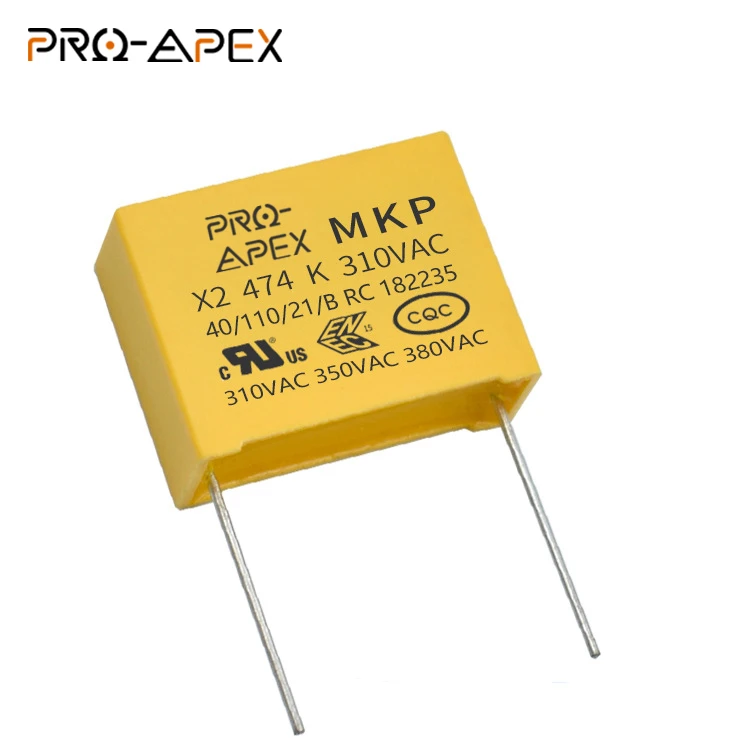

X2 Safety Capacitor for Resistor-Capacitor Buck
Product features: X2 Safety Capacitor for Resistor-Capacitor Buck small high-frequency loss, can withstand the impact of AC spikes and surges, specially designed for resistance-capacitance step-down circuits, low capacitance decay, long life
Product function: Mainly used in resistance-capacitance and step-down circuits such as smart meters, LED modules, thermostats, and small home appliance control boards.
Customized processing:Can be customized according to customer needs
Description
Technical Parameters
Features
1.X2 Safety Capacitor for Resistor-Capacitor Buck is dedicated for RC step-down and has passed the CQC CUL UL ENEC safety certification.
2. It can withstand overvoltage impact and can be used stably for a long time in harsh environments such as high temperature and high humidity.
3. Excellent self-healing property.
4. Good flame retardant and fireproof function.
5. The capacity attenuation is small. If 250VAC 50HZ is applied for a long time, the annual capacity attenuation is within 5%, generally controlled at about 1-3%, and the product life is significantly longer.
6. Mainly used in resistance-capacitance step-down circuits.
Specifications
|
Reference Standard |
IEC 60384-14:2005 |
|

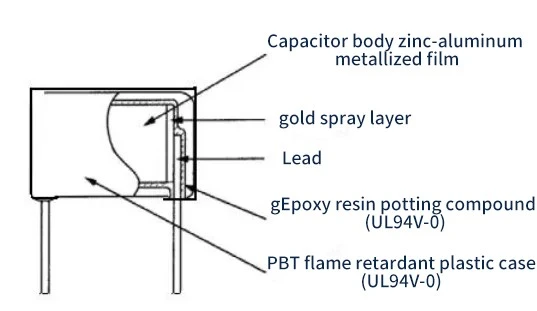

Capacitor Medium |
Metallized polypropylene film |
|
Capacity Error |
±10%(K) |
|
Capacity Range |
0.001～4.7μF |
|
Rated Voltage |
310/350/380VAC |
|
Voltage Proof |
4.3UR(60S)Small-scale1.75UR(60S) |
|
Rated Temperature |
110℃ |
|
Operating Temperature |
-40℃～110℃ |
|
Climate Category |
40/110/21B |
|
Dissipation Facton |
Max 0.1%(at 1KHZ,25℃) |
|
Insulation Resistance |
CR≤0.33μF IR≥15000MΩ UR≤100V |
FAQ
