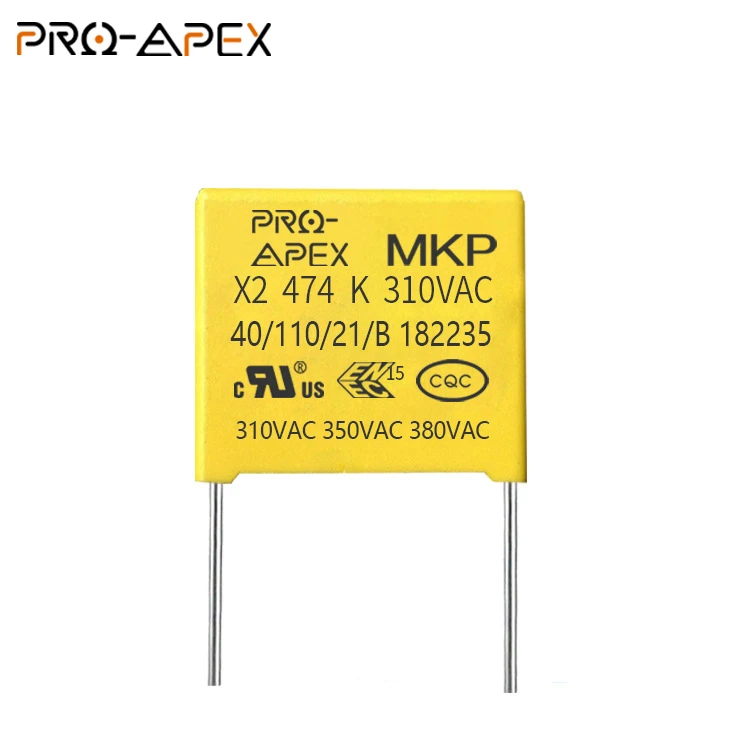

Double 85 Special X2 Safety Capacitor
SFC-04
SFC-04

Double 85 Special X2 Safety Capacitor

Product material: Rolled metallized polypropylene film
Product features: Double 85 Special X2 Safety Capacitor small size, good self-healing; low frequency loss, low temperature rise, high impact strength
Product function: Suitable for high frequency, DC, AC and pulse high current occasions, such as: lamps, power supplies, microwave frequency conversion circuits, etc.
Customized processing: Can be customized according to customer needs

Send Inquiry

Description

Technical Parameters

Features

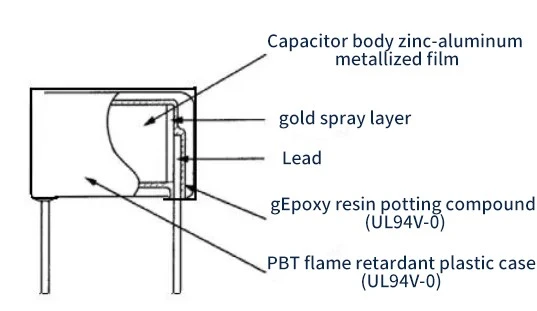

Double 85 Special X2 Safety Capacitor is a non-inductive structure, made of metallized polypropylene film as the dielectric/electrode winding, the wire is made of tinned copper-clad steel wire, sealed in the plastic shell with epoxy resin, the appearance is consistent, and the high-frequency loss Small, suitable for large current, high insulation resistance, good self-healing, long life, can withstand 2.5KV pulse voltage.

①Suppress interference and pass CQCUL ENEC safety certification.

②Can withstand overvoltage impact.

③It has superior self-healing properties.

④It has good flame-retardant and fire-proof functions.

⑤Electrode: metal evaporation layer (zinc-aluminum composite thickened type).

⑥Widely used in anti-interference occasions such as cross-line power supply with high requirements

Specifications

Reference Standard	IEC 60384-14:2005
Climatic Category	40/110/21B
Operating Temperature Range	-40℃~110℃
Capacitance Range	0.001-4.7μF
Rated Voltage	310 VAC
Capacitance Tolerance	±10%(K)
Voltage proof	4.3 UR (60S) 1.75UR(60S)
Dissipation Facton	Max 0.1%(at 1KHZ,25C)
Insulation Resistance	CR≤0.33uF IR≥15000MQ UR≤100V

FAQ

Q: What parameters need to be considered in resistor selection?

A: 1. Rated power
Power = current square x resistance, a small resistance, if the heat cannot be dissipated in time, it will overheat and burn out. So be careful not to let the power exceed the standard when designing the hardware

2. Working temperature and high temperature power limitation
Operating Temperature Range -55℃to +155℃,but in actual use, there is a power limit at high temperatures.

3. The maximum working voltage of the varistor
Maximum Working Voltage, Maximum Overload Voltage, the two parameters are for the instantaneous peak voltage. In normal design, it is ok to control the voltage not to exceed the standard according to the actual working power. If the circuit has glitches, you need to consider whether the peak value exceeds the standard.
